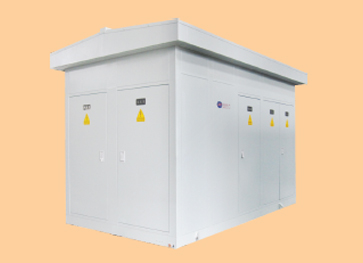

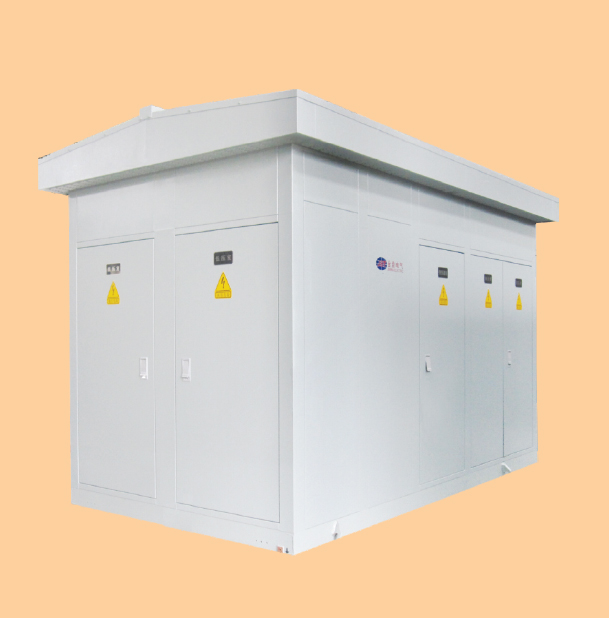

UNITIZED SUBSTATION : 1.6 MVA, 22 KV CLASS

Unitized sub station supplied by us are up to 1600 kva and 11/22kv class. Such USS have the following salient features.

Compact and sturdy design to save space

Good aesthetic look

User friendly & convenient in operation and maintenance

Designed for ultimate safety of operator and apparatus

Adequate insulation level using non-hygroscopic material for connection between HV, LV and Transformer Sections

Emergency stop Push button outside USS

Properly designed Earthing system

Remote operation can be supplied for operator safety

Enclosure designed for moisture and dust protection

USS are designed to have VCB/RMU units, load feeders, P.F. correction panels, change overs etc.

HV COMPARTMENT :

HV VCB OR RMU        HV METERING SET        LIGHTNING ARRESTORS

LV COMPARTMET :

LV ACB/MCCB        LV METERING SET        FEEDERS USING HRC FUSE SWITCHES/MCCBs
